Dual Level Ballcock

POA

Sorry, not available in Australia

Enquire

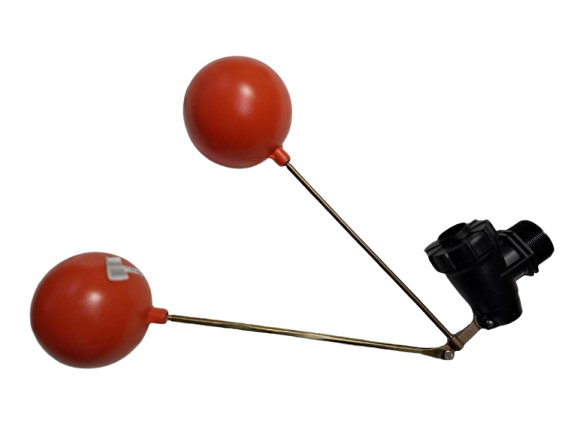

Dual Level Ballcock – Poly Float Valve

Supplied with 2 x Brass Arms & 2 x 6" Floats

Application:

A high-volume inlet control valve designed for pump-fed large storage tanks or reservoirs. The dual levers allow you to set minimum and maximum water levels, reducing pump run time, saving electricity, and extending pump life.

Features:
  • Full-flow operation – pump runs unrestricted until tank is full
  • Large UV-stabilised acetyl construction sleeve body
  • Dezincification-resistant brass levers
  • One fixed lever and one adjustable lever to set desired water level differential
  • No metal valve seat corrosion
  • Fully serviceable design
Installation:
  • Inlet pipe must be horizontal and firmly mounted
  • Flow may need to be reduced at pressures above 480 kPa (70 psi)
  • Hammer arrestor may be required under certain conditions
  • Adjustable arm allows fall of 63mm–250mm before valve opens
  • Fixed arm must not be bent

Suitable for all Perkinz Solar Sub Models

Price Includes:

  GST

  Freight to your address
