A single panel solar water pump for lifestyle blocks
A solar submersible pump with one PV Panel supplying water for sheep and cattle

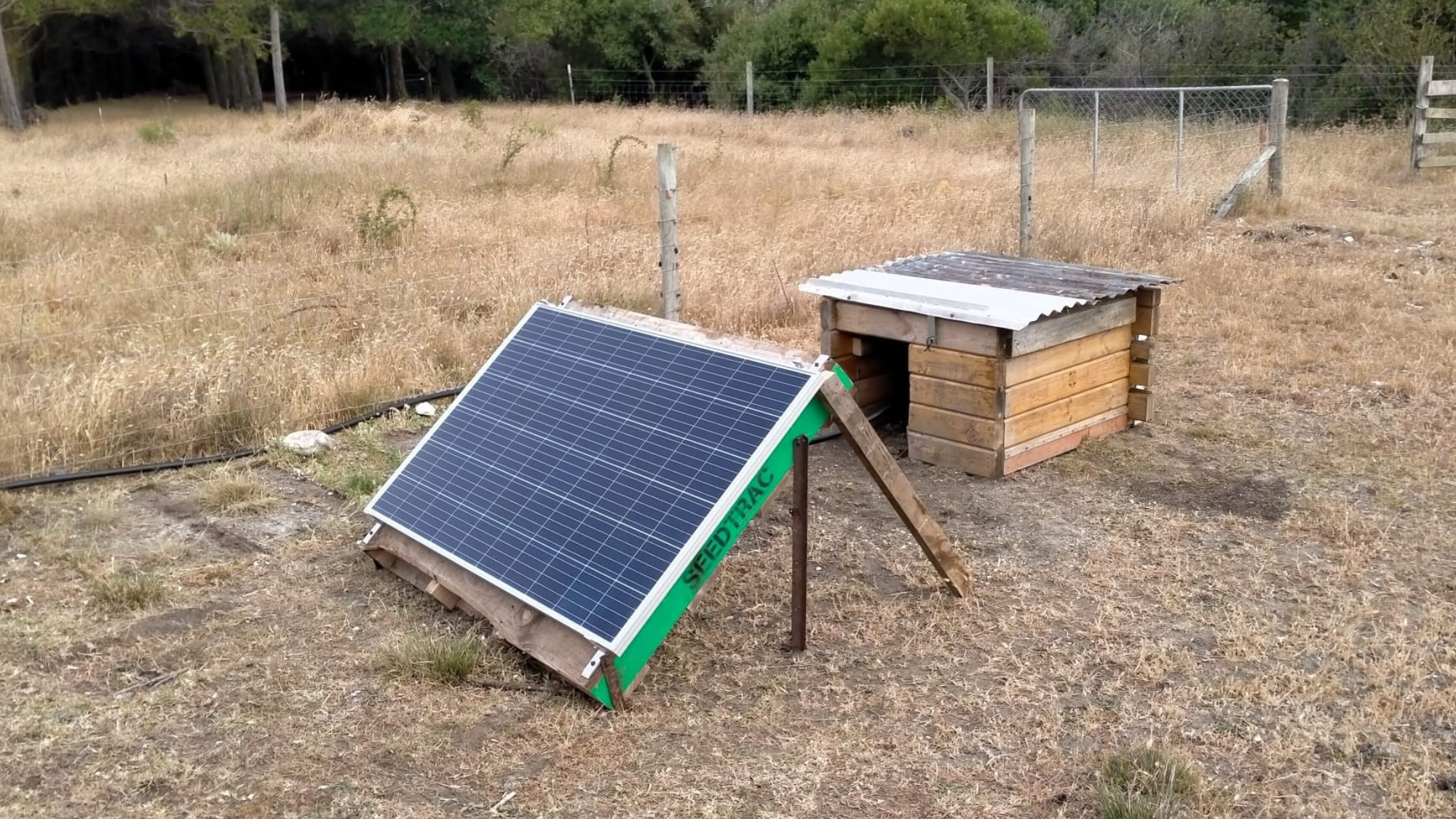

Located insdie a wooden box to protect this sokar water pump from rodents and frosts.

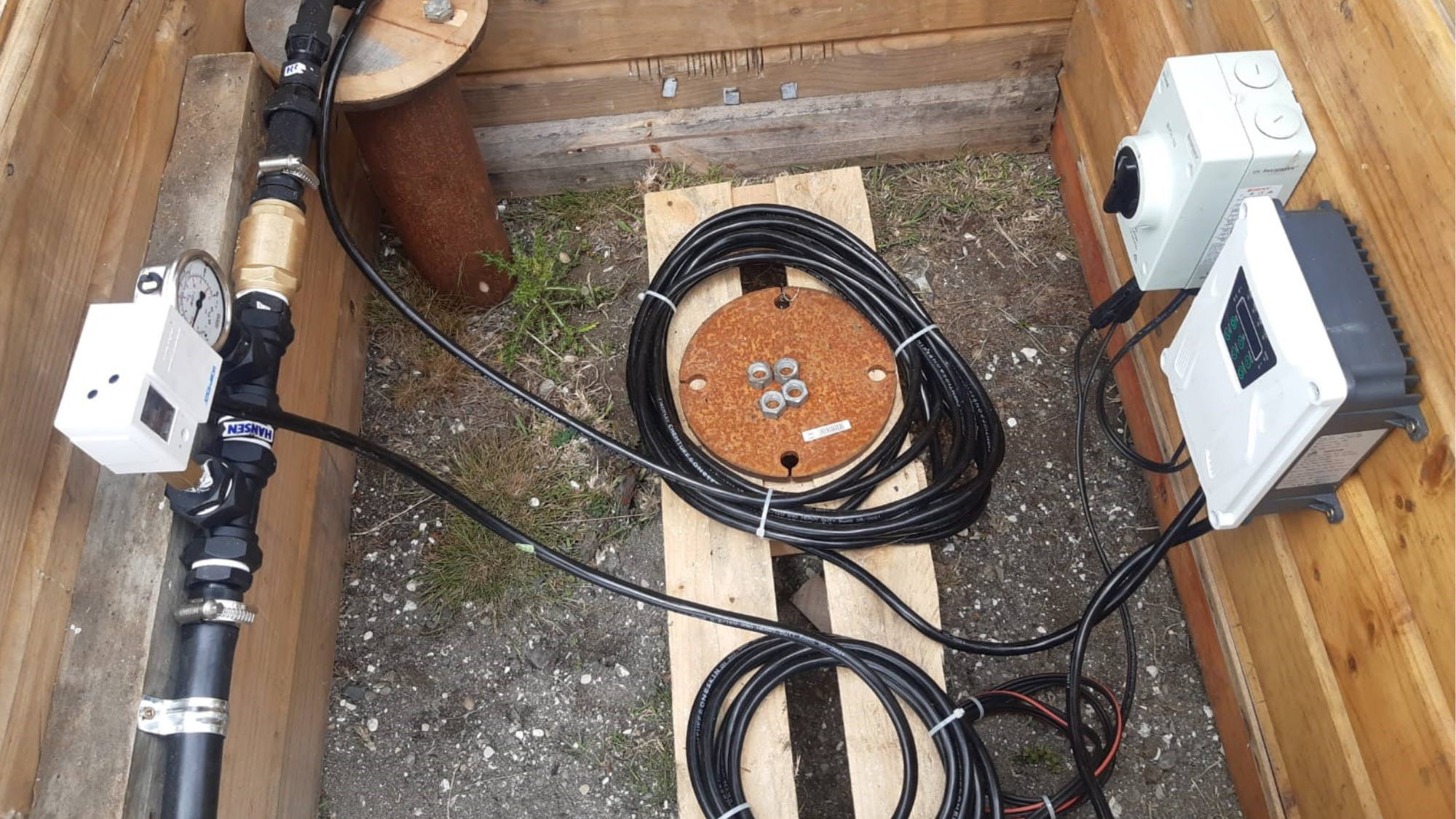

Perkinz Solar Sub pump and controller
Solar water pump working in a bore in Central Otago
Controller and on/off switch for our solar water pumps
Flow chart for PSP30 Perkinz Solar Water Pump
A single panel solar water pump for lifestyle blocks
A solar submersible pump with one PV Panel supplying water for sheep and cattle
Located insdie a wooden box to protect this sokar water pump from rodents and frosts.
Perkinz Solar Sub pump and controller
Solar water pump working in a bore in Central Otago
Controller and on/off switch for our solar water pumps
Flow chart for PSP30 Perkinz Solar Water Pump

Perkinz New Zealand - EB Engineering

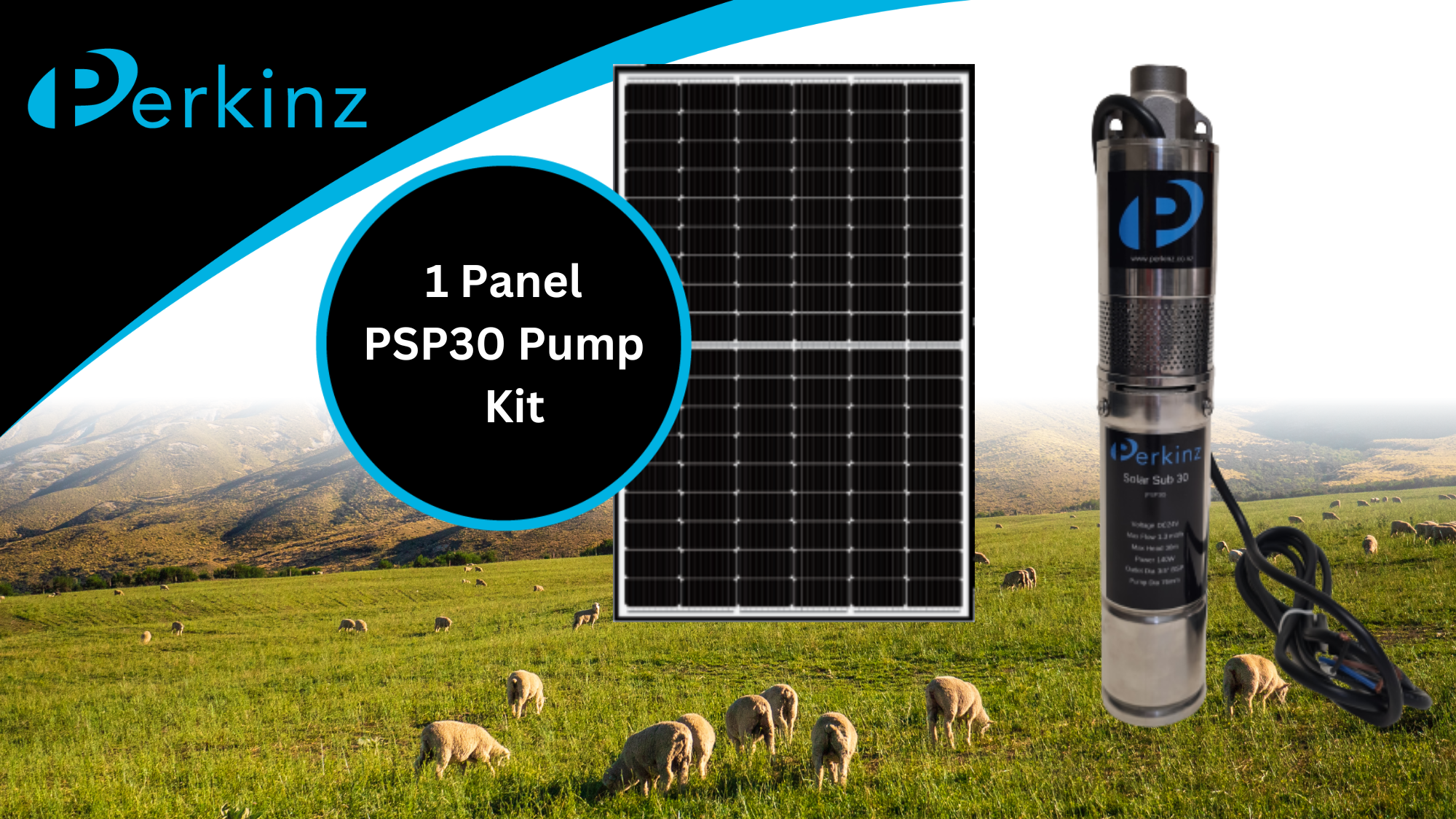

Perkinz Solar Sub 30/1PV Turnkey Kit

POA

Sorry, not available in Australia

Enquire

Complete pre-wired solar water pumping solution capable of pumping up to 7,000 litres of water per day, or up to a height of 30 metres.

Contains

- Perkinz Solar Sub 30 Pump and controller

- 1 x 440W Solar PV Panel

- 15m cable

- Auto On/Off Pressure sensor, and pressure gauge.

- Mounting rail, mounting brackets(you need to build the platform)

System comes fully wired up and just needs PV cable to be clipped in to the PV panel. It is tested and checked before being sent, and Steve is the person you will call if you have any questions during installation.

Please contact Steve on 0210 277 3762 before you purchase as he will want to check that it will do the job for you.

He will want to know the following

- how much water you need pumped per day in summer

- how high and how far you need to pump water, and through what size pipe

- your water source(bore, dam, stream etc)

- distance of solar panels from pump

-------------------------------------------

Price includes GST & Freight to your nearest Mainfreight Depot.

1 Year back to base warranty.
