Aquatec SWP 6000 Turnkey Kit

POA

Sorry, not available in Australia

Enquire

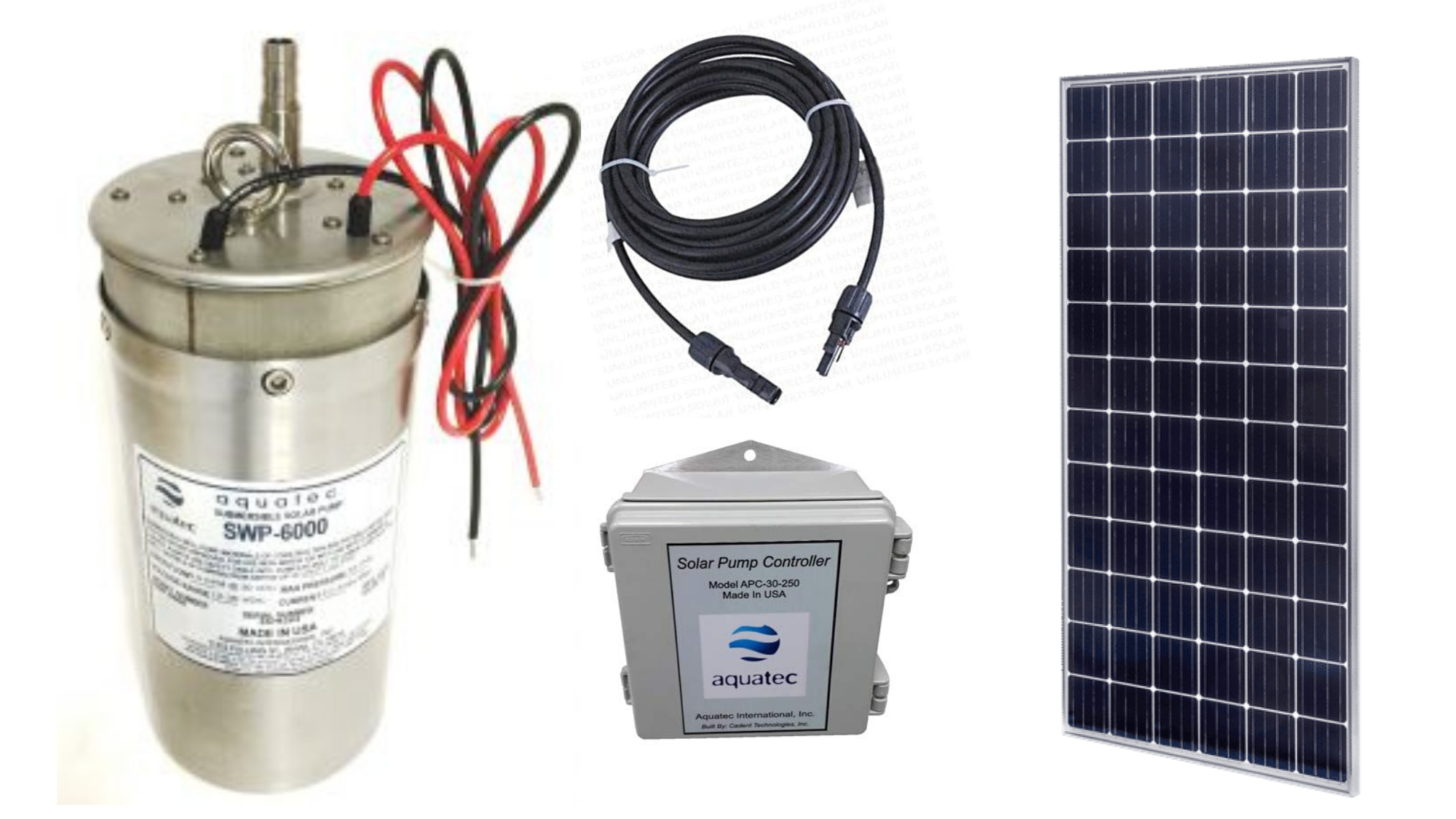

The SWP6000 Kit includes a pump, 15m of PV cable, connectors, controller, 280W PV panel and is all wired up and ready to clip together.

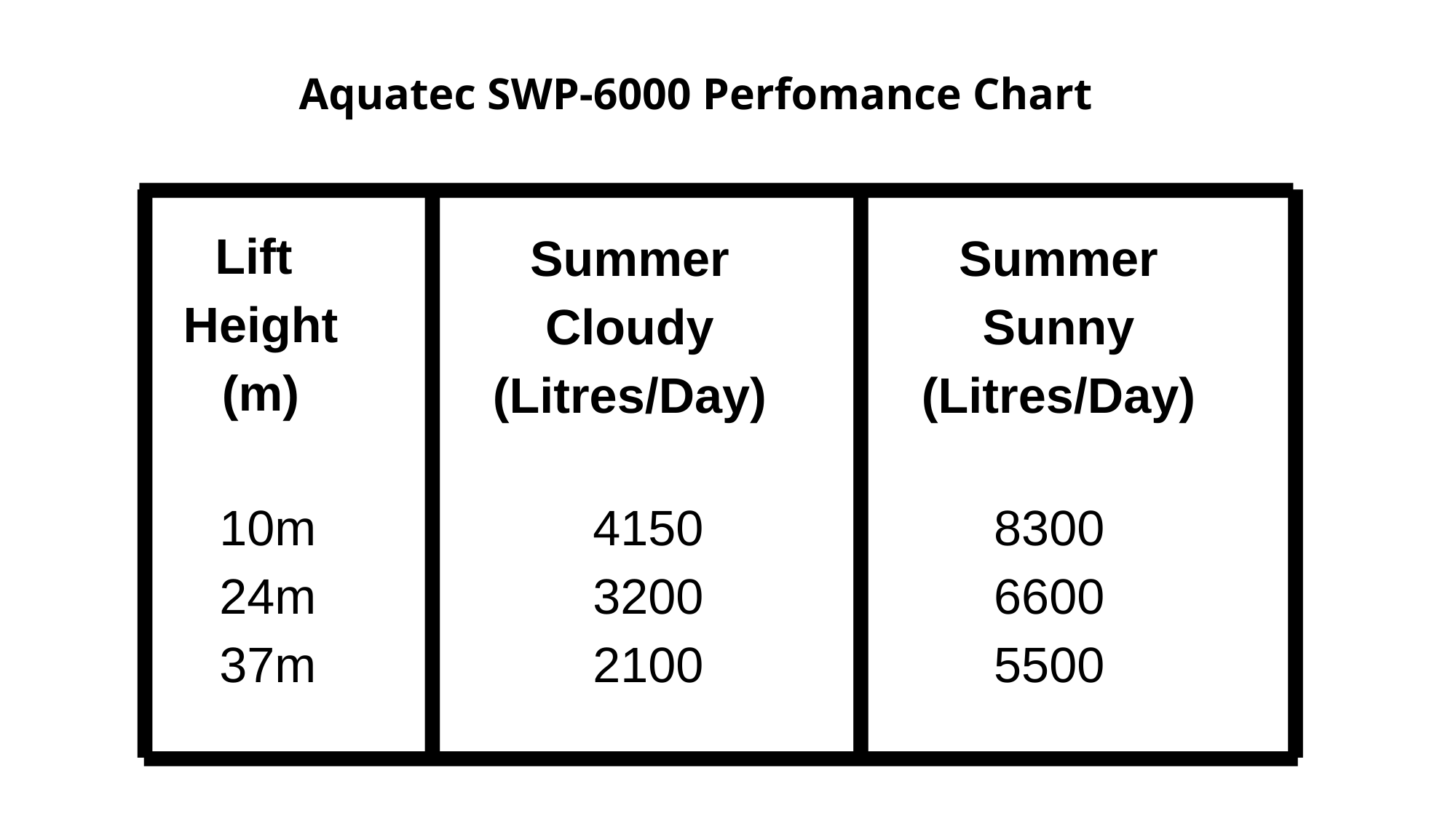

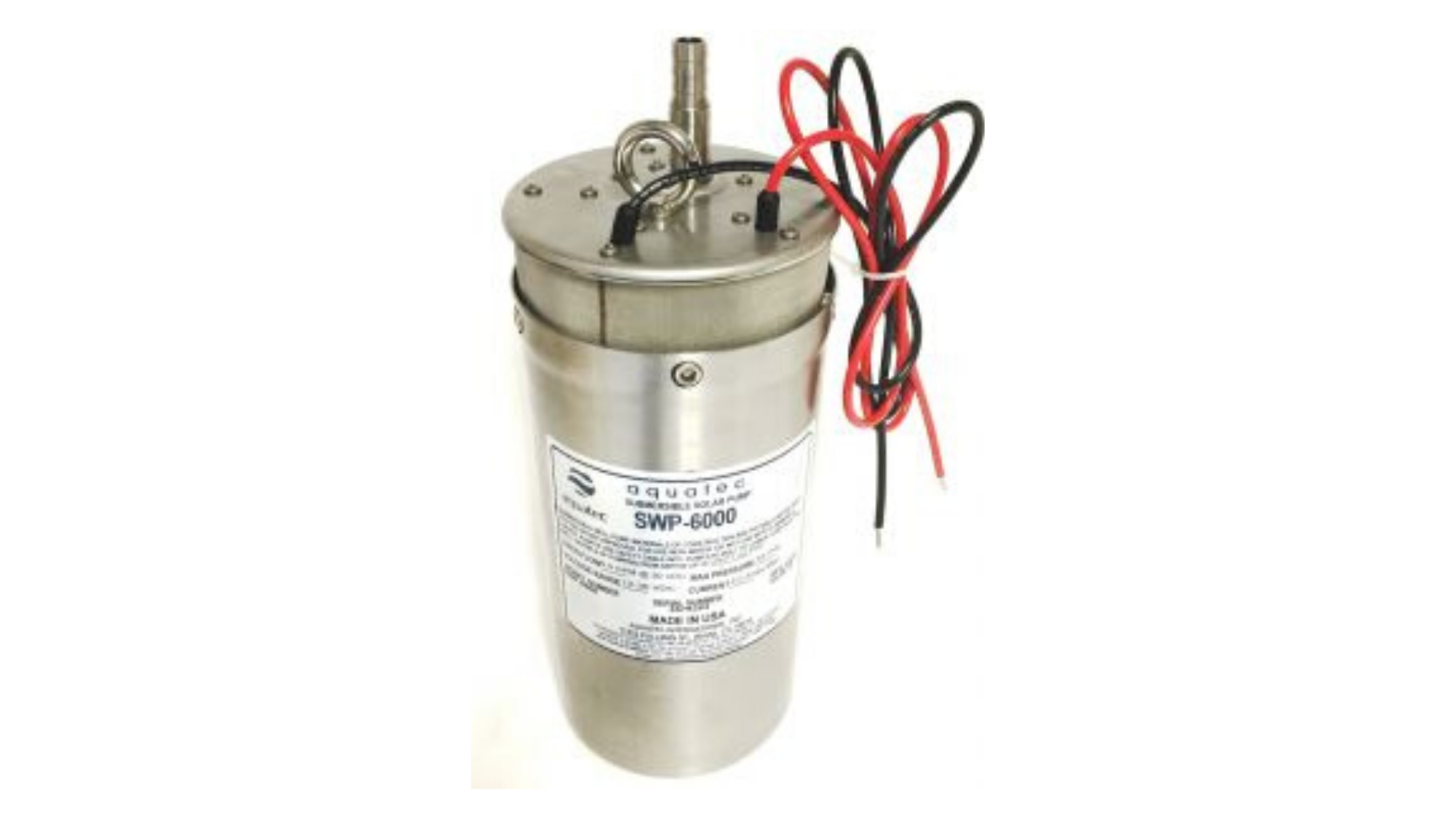

The SWP-6000 Solar submersible pump is ideal for remote off-grid locations for home and livestock water needs. Can pump to a height of 37m, and up to 8,300 litres per day.

The Aquatec SWP Series are electric positive displacement diaphragm pumps. Internal overpressure protection is included in the design of the pump to protect all components in the installation.

The maximum pump diameter of the SWP-6000 is 127mm (5”), designed to fit into a standard 150mm (6”) well casing.

Features & Benefits
  • Made in USA with proven Aquatec design and quality.
  • SWP-6000 fits well casings 150mm (6”) or larger.
  • Pump is protected from moisture intrusion by double o-ring seals.
  • Capable of pumping from depths of up to 37m (SWP-6000),
  • Able to operate with voltage up to 30 VDC.
  • Rugged Stainless Steel shell construction for optimum durability and corrosion resistance.
  • Factory-installed 91 cm of 3.31mm2 (12 AWG ) motor leads eliminate failure from improperly field-installed leads.
  • Dual-size port outlet can accommodate 15mm (½”) hose barb and ½” drop pipe (15.8mm ID) or 18mm (5/8”) hose barb.
  • Anti-wicking cable entrance protects the motor from an incorrectly installed splice.
  • Over-sized eyelet for easy installation of safety line.
  • Built-in 50 mesh stainless steel screen to prevent debris intrusion.
  • Field serviceable with our full line of repair kits.
  • Warranty of 12 months from date of purchase not to exceed 18 months from date of manufacture.

The Aquatec APC-30-250 controller is designed specifically to be an interface between a photovoltaic array, and the Aquatec SWP series submersible pumps.

It is a solid state power converter that optimizes and protects the solar well pump.

The controller automatically extends pump run time by the use of current boosting, and provides protection from excessive Voltage and Current, as well as dry-running.

UV stabilized NEMA 4 weather proof enclosure, Linear Current Booster, maximum output voltage 30Vdc and open circuit voltage 45Vdc.
