Perkinz New Zealand - EB Engineering

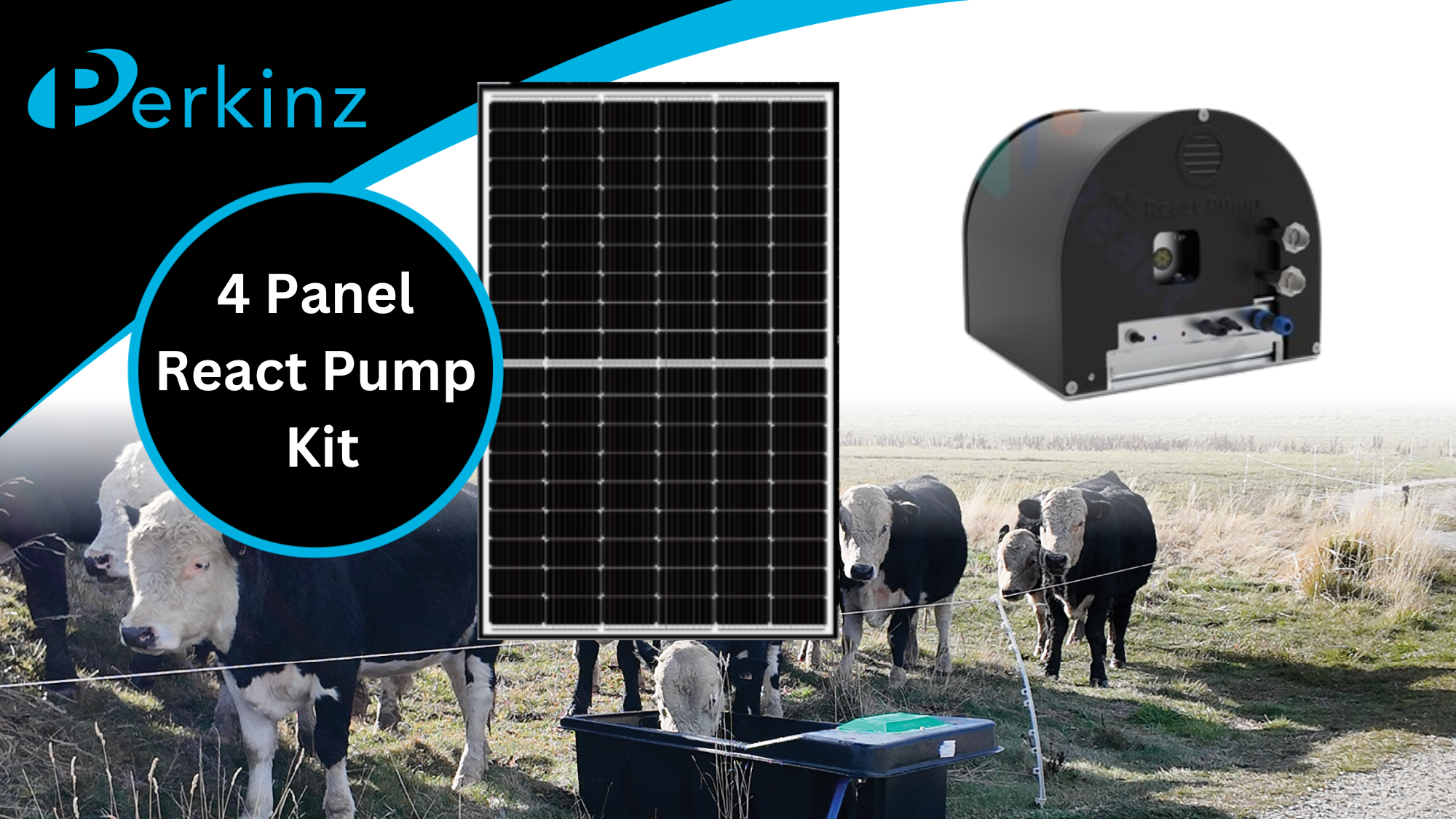

React Solar Water Pump 1660W (2.2hp) Turnkey Kit

POA

Sorry, not available in Australia

Enquire

We now only sell the React Pump 2 which has :

  • Stronger base - 4mm grade 5 aluminium
  • Fully enclosed BLDC and Nano PCB in aluminium enclosure & base
  • Stronger molded larger fairing that is very easy to remove
  • Side water connections (easy to access) with quick connect stainless fittings.
  • Packed head - so can keep running if you get a small seal leak without any consequences
  • Spare parts kit for 3 services - 3 years assuming clean water and correct installation
  • Improved foot valve

Active sensor & software protection to detect and prevent:

  • overheating - run dry, ambient, freezing  and electronics overload
  • LED communication of fault error
  • motor stalling
  • tank full - turns off (not new)
Note. Price includes GST and freight to your nearest Toll Depot or a Rural Supply store if that suits you more.



These are the main advantages:

  • Do it yourself - No builder, electrician or water take permit needed (in NZ).

  • Direct drive (no gearbox to add weight, cost and complexity).

  • Brushless motor (no brushes to wear out in the motor).

  • Electronic motor driver (up to 95% efficient) with MPPT (maximum power point tracking).

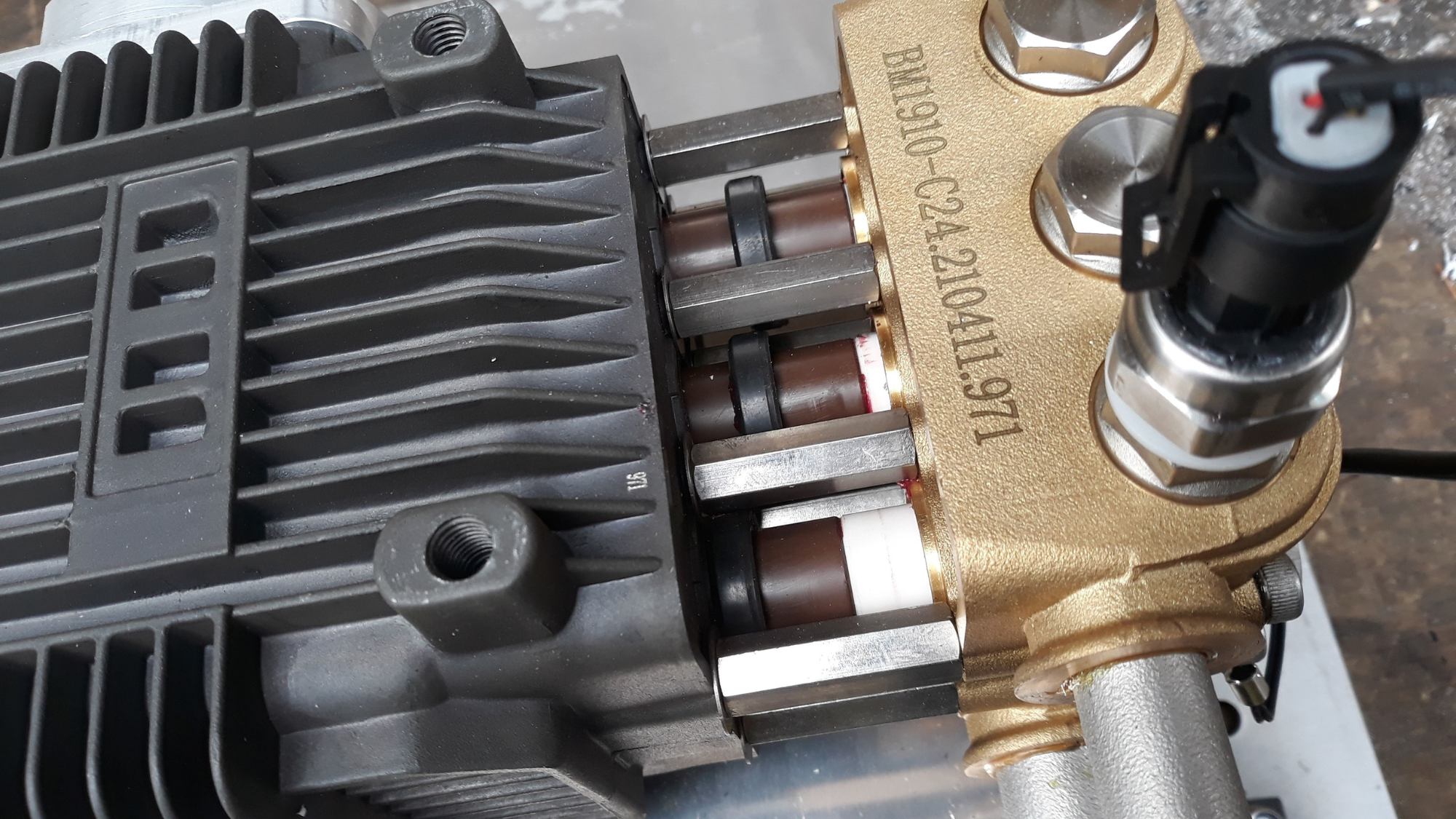

  • High-efficiency plunger triplex pump (up to 85% efficient).

  • Slow running rpm (in the range 200-1200rpm) makes it quiet and durable.

  • Built tough for global export and fits into a DHL export carton.

  • Will pump to a set pressure (the point where the ball cock start to close) and then stop.

  • React pumps last longer because each individual component does less work. The flow of water from a triplex pump is relatively constant so no pressure dampener is needed.

  • Can pump clean or dirty water (within reason) as plunger pumps are less prone to damage than piston pumps. The plunger does not run in a bore where abrasive grit can become trapped.

  • If the super-hard ceramic plungers are ever damaged they are low cost and quick to replace.

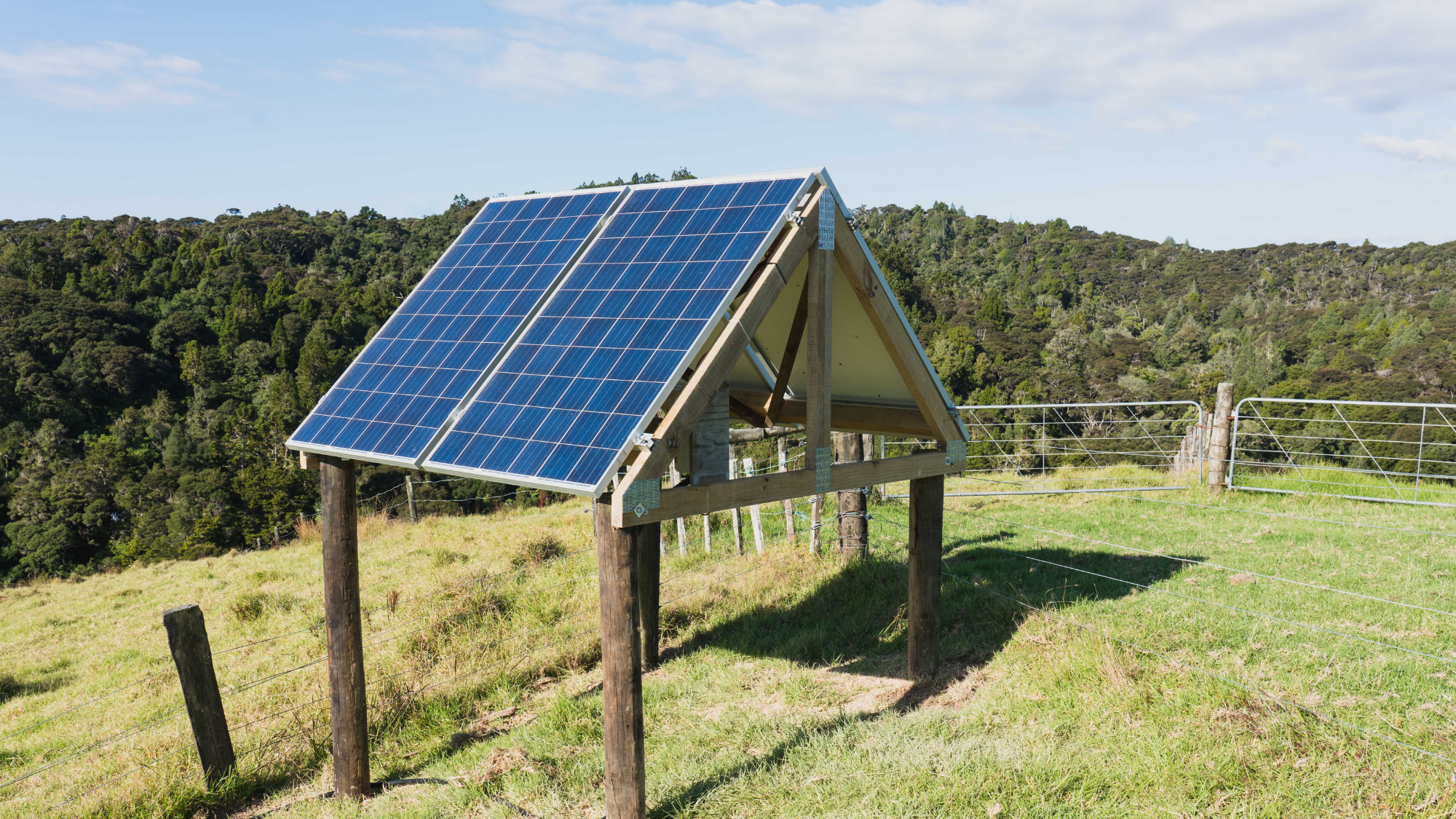

This listing is for React Pump, 1660W Panels(4 x 415W), mounting rails/brackets and 15m cable with connectors. All you need to do is mount Panels and connect the pipe.

Suggest you give Wayne a call to make sure it suits what you are looking to do and also what the delivery time will be.

Check out the Advantages Manual

Check out the Quick Start Guide
